Motion detection in up to 192 locations Night vision infrared within 20m. The 1080P HD camera resolution is superior to the 720P used in DIY home security systems. The UL Tech CCTV 1080P 4 channel CCTV Security Camera is undoubtedly one of the most advanced home surveillance systems on the market.
Our weatherproof CCTV system uses the most recent security monitoring technology. It is suitable for indoor and outdoor use. High resolution allows you to easily identify facial features, license plates, and clothing patterns in case of a home invasion or break-in. The System allows you to view your recordings from a long time back by inserting an external hard drive.
The CCTV System supports Wi-Fi and P2P technology, while the 5-in-1 DVR can output video via VGA or HDMI. You can also access the System remotely via your smartphone or mobile device using the XMEye app. If any unauthorized motion is detected, an email will be sent instantly to your account. You can set the motion detection to activate the camera only when motion is detected.
The UL-Tech 1080P Security Camera will be there to keep an eye on your property night and day, even when you aren't home. Get total security and peace of mind by installing one today.
Not included: A Hard Drive is required to record this product.
Features
1080P HD
4-Channel 1080N 5-in-1 Digital Video Recorder
Supports AHD and TVI, CVI and CVBS.
Help P2P technology
High resolution cameras with built-in IR-cut
External hard drive for video storage (Not Included)
Remote access
Log in to XMEye app to view the data on your phone or computer
Motion detection that can be customized
Instant email alarm
HDMI and VGA outputs
All-weather IP66 design
Outdoor and indoor use
Support USB backup and storage
Data protection during power outages
Live viewing of 4 channels via your smart phone
Your smart phone can support capture and recording
Support Cloud System for Remote Access/Support HDMI output
It is easy to install
Bonus and USB mouse
Specifications
Video:
Codec: H264
VGA, HDMI HD Monitor Quality
Preview capability 4*1080N
Capability to encode: 4*1080N@12fps
Decode ability: 4*1080N@12fps
Multi-mode input: analog 4*1080N, 4*AHD–M; and 4*AHD–L
Hybrid: 4*1080N, analog + 4*960P, network
Network only: 4*720P, 4*1080P, 8*720P,8*1080P,8*720P;8*1080P.1*1080P.
Motion detection: Each screen can have 192 (16*12), detection areas. Multi-level security sensitivity (limited local channel) can also be set.
Record and playback
Mode: Manual > Alarm > Motion detection
Local playback: 8ch (local input mod)
Seatrch mode: Search for time, calenders, events, and channels
External inferface
Video input: 8ch BNC
Video output: 1ch VHA and 1ch HDMI
Loop vout N/A
Audio I/O: 0/0
Alarm I/O: 0/0
RJ45 10M/100M network interface for self-adaptation
PTZ Control: 1*RS485, Support types of PTZ Protocols
USB: 2* USB 2.0 ports
HDD: 1*SATA ports (Maximum 6TB/per).
Backup and storage
Video storage: HDD and network
Backup mode: Network.
General:
12V/2A power supply

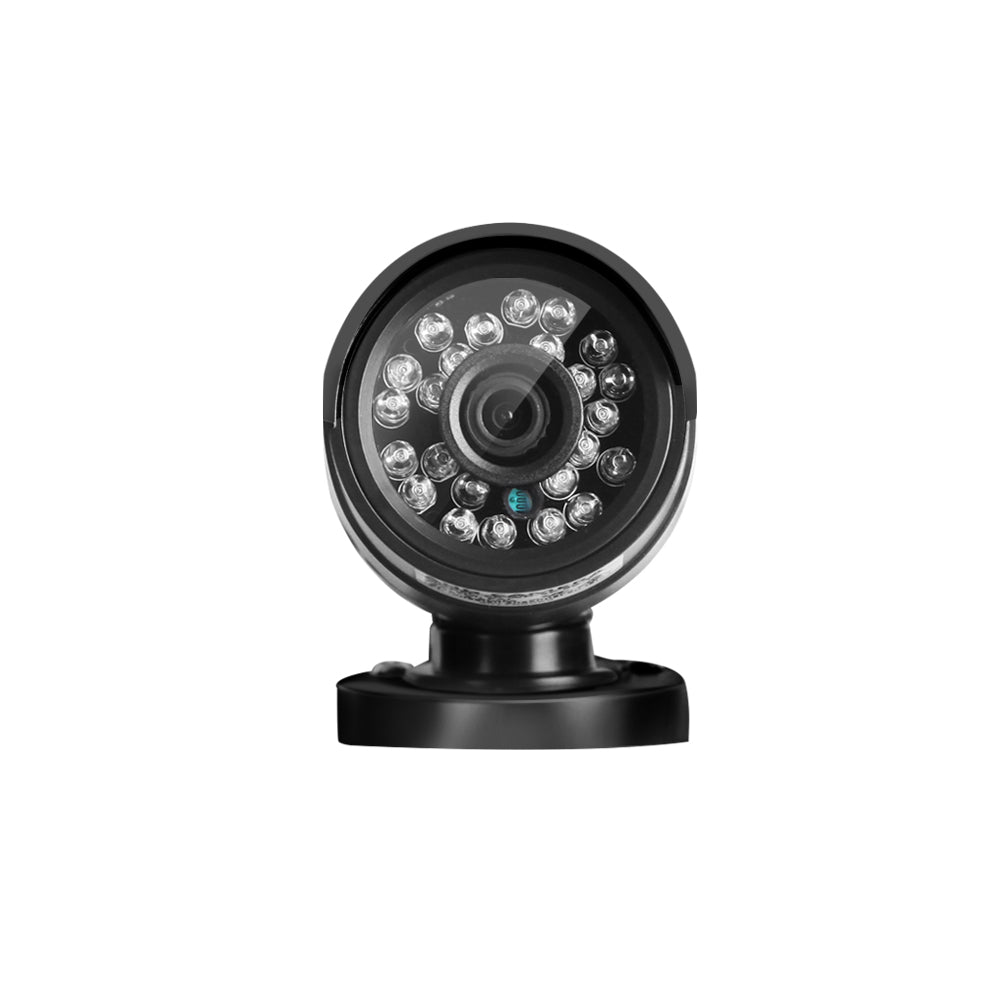

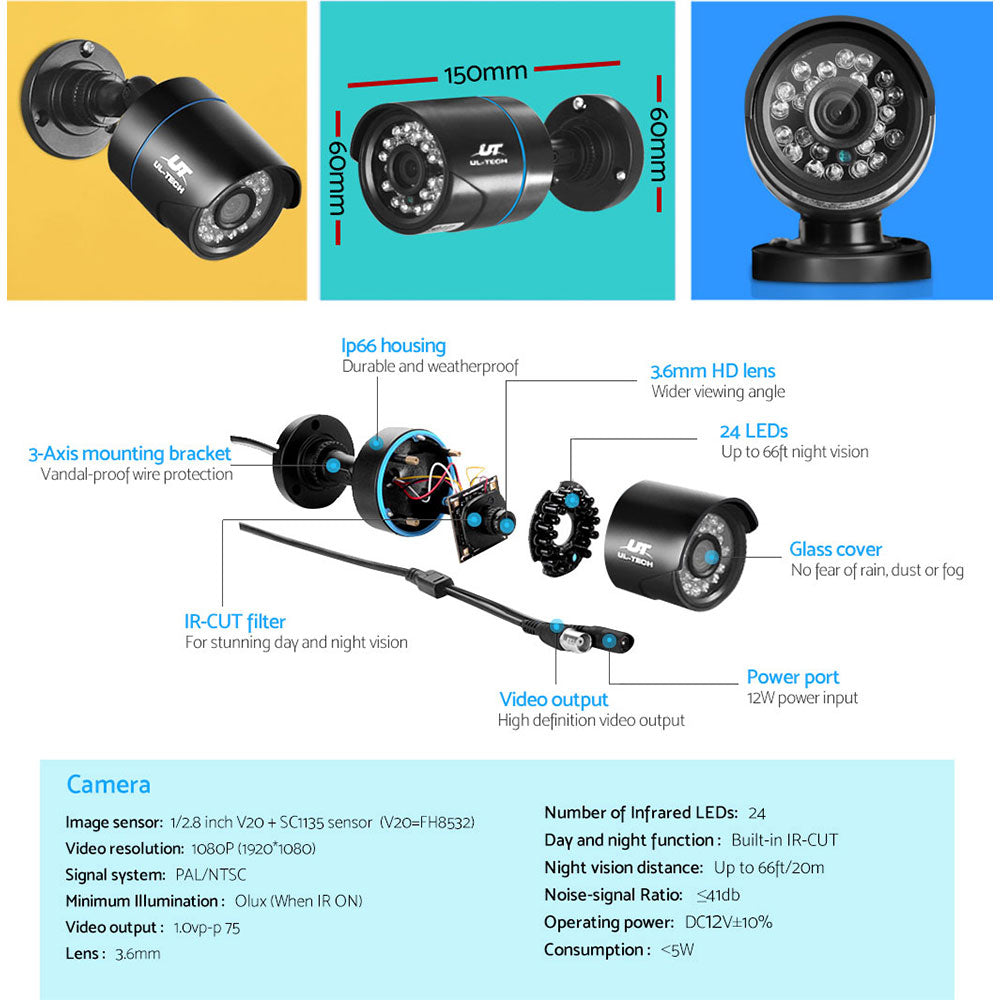

Camera
Image sensor: 1/2.8 inch V20 +SC1135 sensor, (V20+FH8532).
Video resolution: 1080P (1920*1080).
What is the signal system? PAL/NTSC
Minimum illumination: Olux (when IR is on).
Video output: 1.0vp-p75
Lens: 3.6mm
24 infrared LEDS
Night and day function: Built in IR-CUT
Night vision distances up to 66ft/ 20m
Noise-signal ratio: 0.41db
DC12V?10%
Consumption: 5W

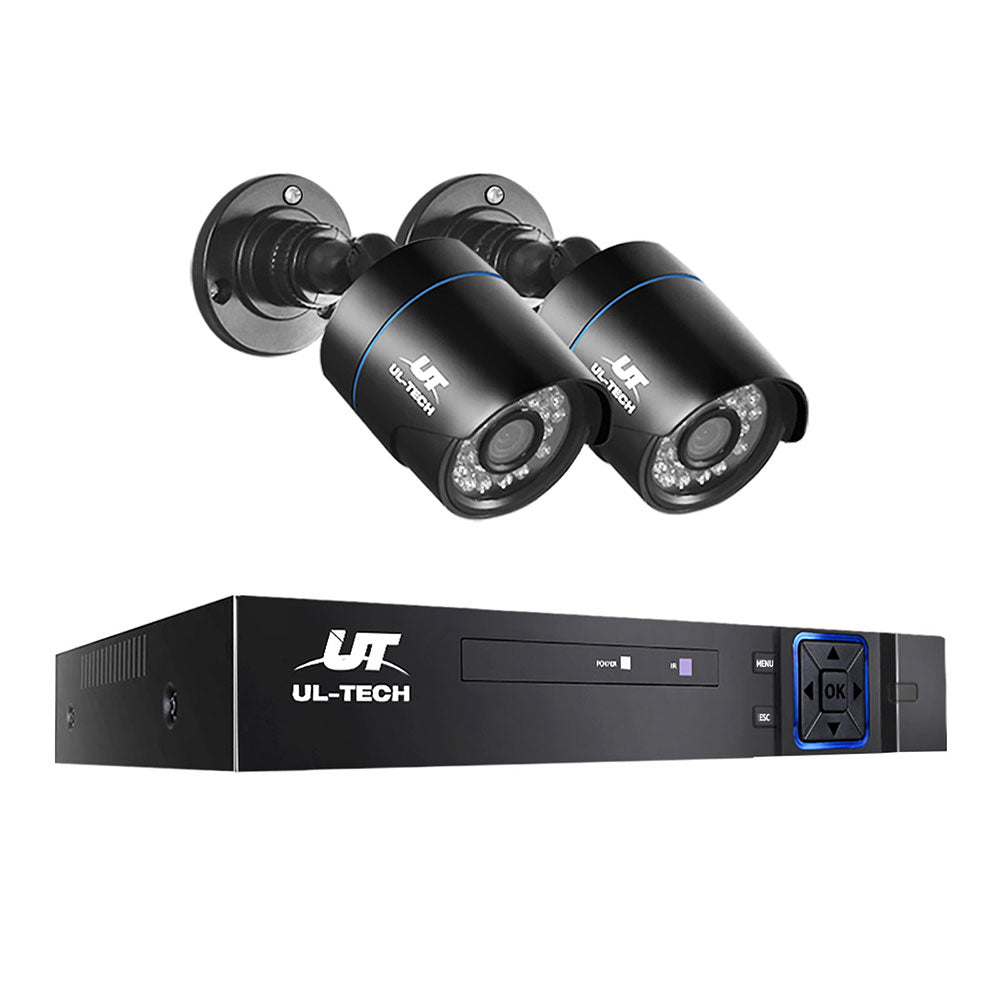

Products:
2x AHD Camera
1 x 1080 4CH DV Recorder
2 x 18.3m (60ft), 2-in-1 BNC/Power Cable
1 x 1-4 Splitter cable
2 x 12V/2A Power
1 x USB Mouse
1 x User Manual
